November/ December Dakota Territory Air Museum P-47 Update

December 31, 2020

More skin has been fitted and riveting has begun on the wings.

Update

The newly restored radio components arrived from John Castorina at Warbird Radios and permanent installation on the 5th Air Force field modified mounts has begun. The restoration technicians continue working hard on the wings, with new skin and wheel wheel completion the major tasks this month. Hydraulic plumbing and radio wiring is the focus of fuselage restoration.

Wing

The structurally complex wing remains the major focus of restoration efforts this month.

The process of fitting, trimming and drilling the wing skins takes a great deal of time, but progress is steady.
The gun bay is nearly ready for the 4 Browning M-2 .50 caliber guns.
The eight .50 caliber machine guns gave the P-47 the second highest projectile throw-weight of
any U.S. fighter that served in World War II, second only to the Northrop P-61 Black Widow night fighter.
The ammunition bays are near completion.

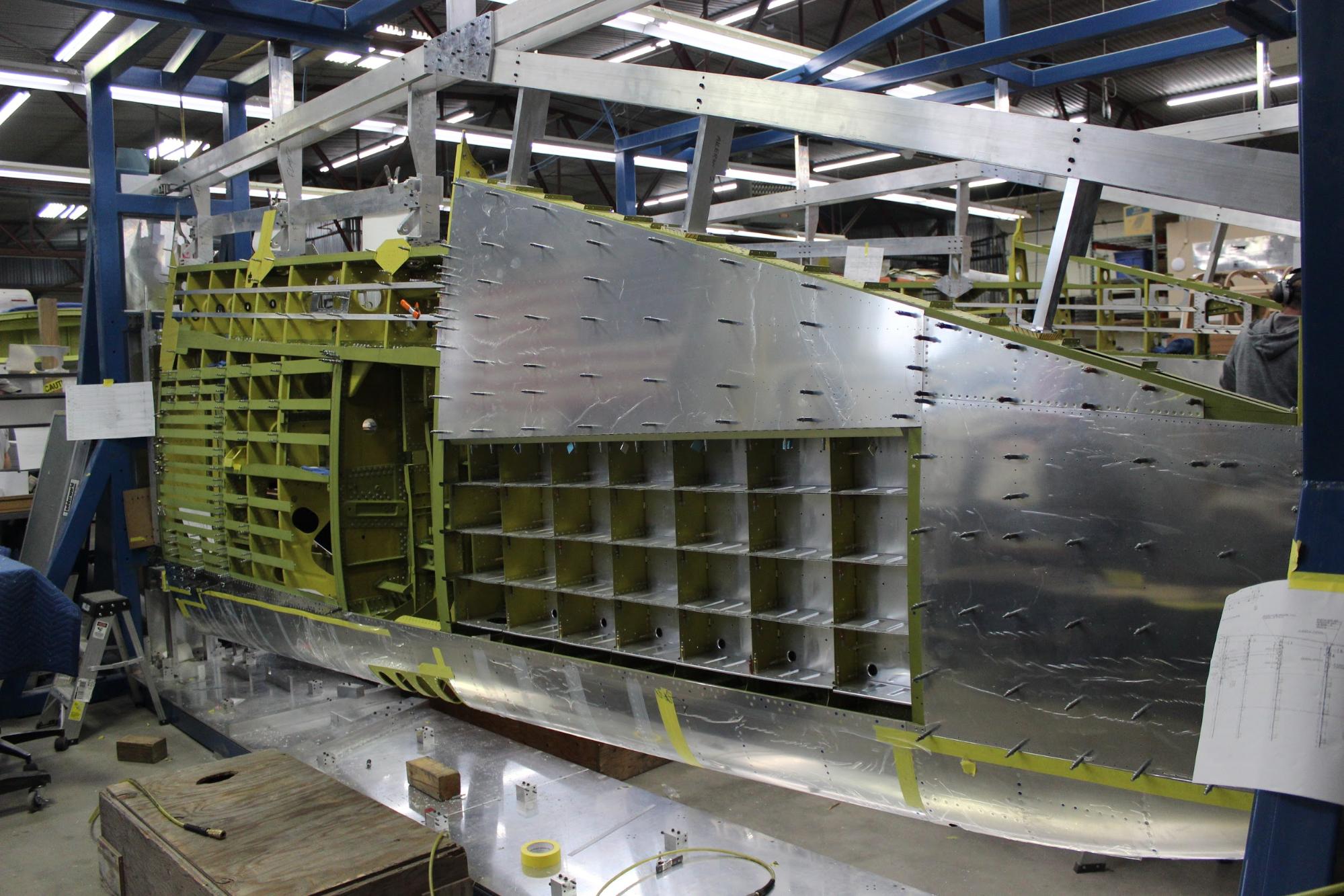

This is the upper inboard portion of the right wing. With all the closely spaced structural elements, it is easy to see why so many characterize the P-47 as “built like a tank”.
The ejection ports for the spent .50 caliber casings (4 rectangular openings) are just outboard of the main landing gear.
This view of the lower side of the left wing shows, from the right, the wheel well, ejection ports, and new wing skin.
The engineering drawings identify these smaller spanwise elements as “stringers” despite that name being more commonly used for fuselage components.

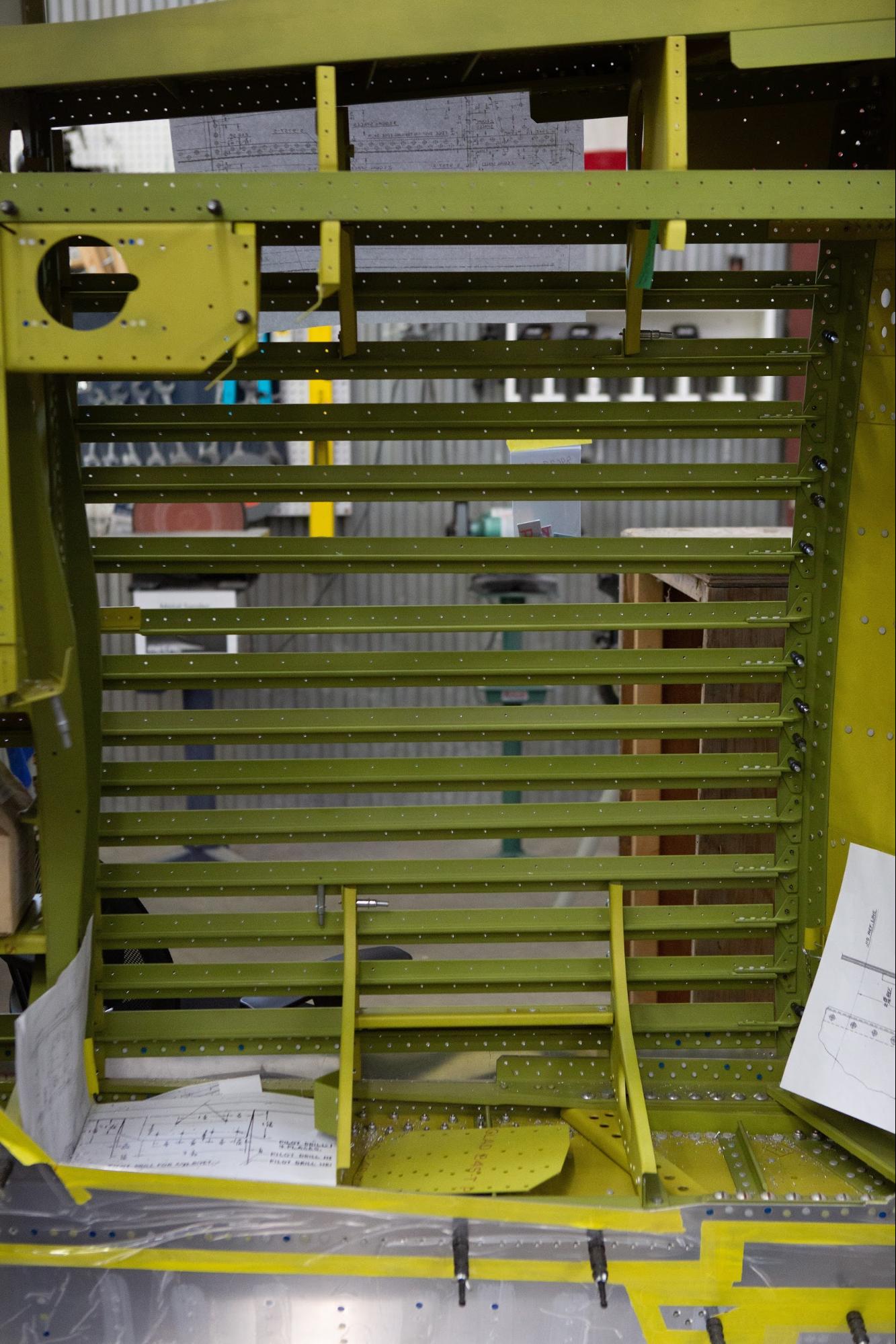

This area of closely spaced stringers supports the wing loads over the landing gear well openings.
This image gives perspective on the placement of the stringers detailed in the previous photos.

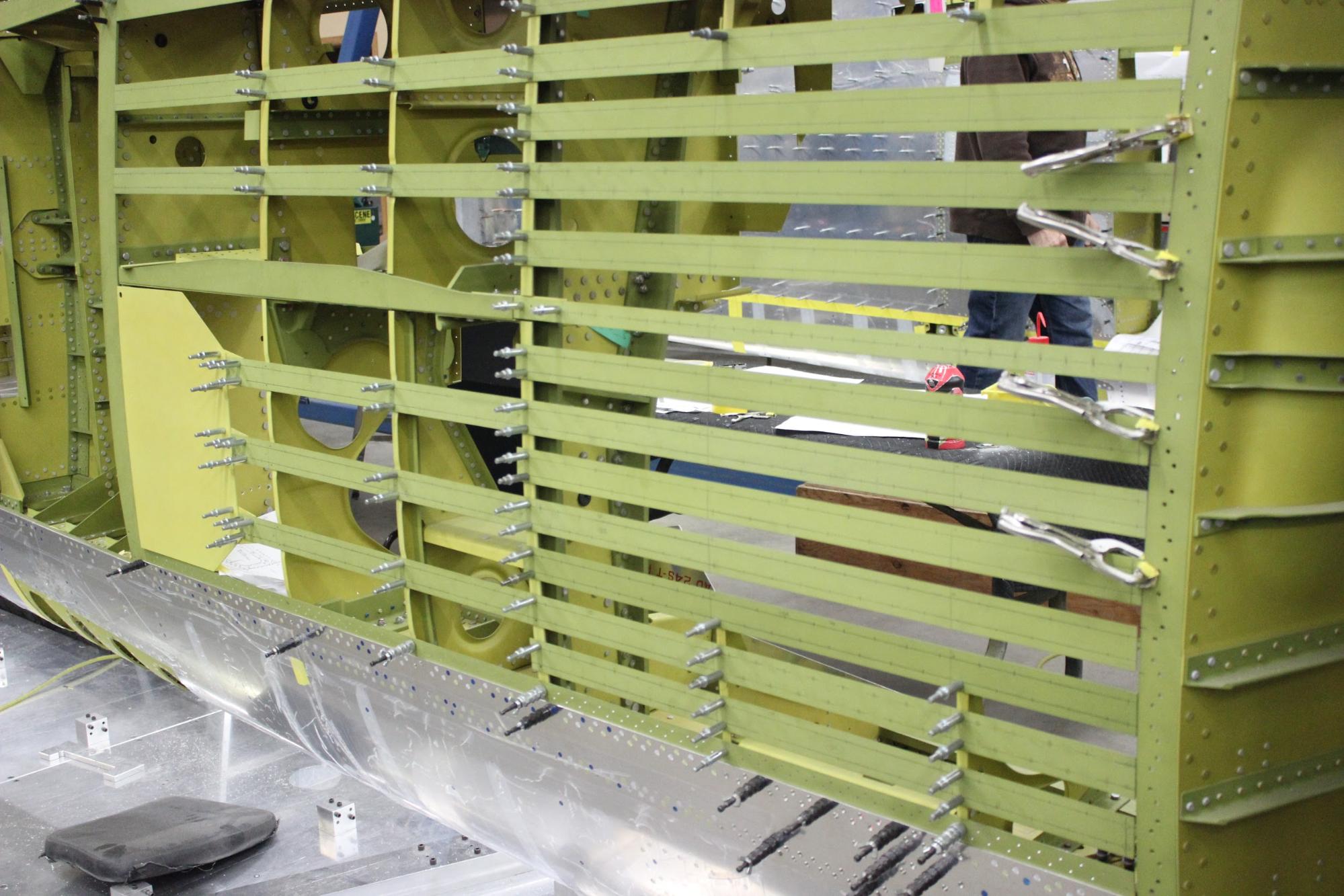

Here the stringers are clecoed to the reinforcing plate that ties the ribs, stringers, and gun bay together above the landing gear pivot.
The lighter colored piece is a reinforcing plate that ties the root rib to the spar.
Randy measures hole spacing as work on the wing skins progresses.
Marks for rivet hole drilling must be measured carefully and laid out with precision.

Wheel Wells

The underside of the right wing near the root shows the wheel well, and ejection ports for spent .50 caliber casings
This is the section of wheel well where the wheel and tire stows upon retraction.
This angle shows the wheel well and the openings that allow the main gear strut to retract into the wing, looking from the wing tip end.
The wheel well and strut openings are shown from the wing root.
The uplock access cover has been permanently installed.

Fuselage Systems

The outward appearance of the fuselage doesn’t change much as all the myriad of internal systems are installed and connected, but progress goes on.

The aluminum structure surrounding the forward ring of the engine mount is called the preheater assembly.
Mounted on the lower section of the firewall is the water injection pump (visible in the lower portion of the photo with the blue anodized fittings).
Hydraulic tubing runs in and out of the hydraulic system filter.
The hydraulic plumbing is complex, as are all the systems on the P-47.
The dark grey rectangular box with the four hydraulic lines connected to it is the landing gear and flap selection valve.
The initial connections for the radio wiring have been made, and Aaron will route the wiring, connect it to the radio system components.
Once this is finished, he will clean up the wiring by duplicating how the wires would have been originally bundled.
The instrument panel looking in from the left side.
The round black object is the oxygen diluter control, and the black control box to the right of that is the transmitter control box.
The low pressure oxygen fill is complete with the pressure cap now installed.
The elevator control tube is the grey painted tube at the top center of the photo, the tailwheel oleo strut runs vertically below the elevator control.
The vented backsides of the two SCR 274 receivers (grey) show in this angle. These are the newly overhauled units from John Castorina.
These are the same two receivers from the front.

Browning M-2 Machine Guns

The Thunderbolt relied on a formidable array of 8 .50 caliber machine guns for air to air combat and strafing. Most other US fighters used the same weapon, the Browning AN/M2 .50, but only carried 4 or 6 of these heavy machine guns.

The eight .50's firing together from a P-47 could deliver over 9 lbs of lead per second. Spent cases and links were ejected from the bottom of the wing.

The Browning M2 heavy machine gun is a truly remarkable weapon. It is the second longest-serving weapon in the US military’s arsenal, after the M1911 semi-automatic pistol (another weapon designed by the prolific genius of gun design, John Moses Browning). Slightly upgraded versions of the M2 are still employed by over 60 countries worldwide. The M2 defined the modern use of the term “heavy machine gun”.

The origin of the Browning M2 dates back to battle conditions observed in the first World War. At this time the U.S. Army infantry and air service were armed with .30 caliber machine guns like the Browning M1917 on the ground, and the Lewis or Vickers gun on aircraft. Tanks, armored vehicles, and even an armored German aircraft (the Junkers J-1 ground attack aircraft) were introduced in WWI, and because of this it soon became apparent that there was a need for a more powerful round capable of penetrating armor better than the venerable M1 (30-06). General Pershing requested the development of a new machine gun with a caliber not less than .5 inches and a muzzle velocity of at least 2,700 feet per second.

This image of 30 M1 (30-06) to .50 BMG cartridges gives a visual comparison how much larger the Browning .50 BMG M2 round is. The .50 BMG cartridge is almost 5.5 inches long.

John Browning went to work scaling up the M1917 machine gun for a heavier cartridge of his own invention. Browning scaled up the .30-06 round to .50 caliber (12.7-millimeter) initially for use as an anti-tank round and then adopted it for a new machine gun, the water-cooled M1921. The M1921 weighed 79 pounds without water and fired 500 rounds a minute.

John Browning’s machine guns worked on the recoil-operating principle. The rearward force of expanding powder gasses pushes the barrel and bolt to the rear, and after a short recoil, the bolt is unlocked and the barrel stops. The bolt continues to the rear, and the feed mechanism feeds a round from a belt of ammunition. The bolt pushes the cartridge into the chamber as it is returned by a spring until it again joins the barrel. Unfortunately, Browning’s invention wasn’t ready until after the Armistice of 1918, too late for WWI combat.

After Browning’s death in 1926, a Dr. S. H. Green redesigned the M1921 creating a downward-ejecting common receiver design which could be modified to feed from the left or right. The new machine gun became the Browning M2. The right and left feed options would prove to be very useful in adapting the M2 to fighter plane gun bays, since the ammunition chutes would feed from the left on the left wing gun bay and from the right on the other wing. Colt started manufacturing the M2 in 1933.

During WWII, US manufacturers from AC Spark Plug Co., to Frigidaire, to Guide Lamp, built nearly 2,000,000 .50 calibers.

Crewman loading .50 caliber rounds into the ammunition chutes on a P-47, USAAF photo

The Browning .50 caliber was used in very nearly all US WWII fighters and bombers. The M2 began to be installed in US fighters in the 1930’s. Some versions of the Boeing P-26 “Peashooter” carried one .30 and one .50 caliber machine gun. The Navy Grumman F3F had a similar gun set up. By the end of the 30’s the P-40D carried two .50 caliber M2s in each wing.

Combat experience showed the need for more firepower and the typical US fighter carried 3 .50s in each wing by about 1942.

The P-47 carried 4 Browning AN/M2 .50 caliber machine guns in each wing in nearly all Thunderbolt models produced. Up to 400 rounds could be carried per gun, enough for 32 seconds of fire, but the ammunition load was often reduced to compensate for the carriage of bombs or external fuel tanks.

Cooled by the aircraft’s slip-stream, the air-cooled .50 caliber (12.7 mm) AN/M2 was fitted with a substantially lighter 36-inch length barrel, than the M2s destined for ground use. The lighter barrels reduced the weight of the complete unit to 61 lbs. (23 lbs. Less than the 84 lb. Ground version) and also had the effect of increasing the rate of fire. The shorter, lighter barrel in the aircraft version allowed the gun to cycle slightly faster because there was less inertia in the lighter moving barrel and bolt.

AN/M2 .50 caliber aircraft fixed machine gun as used in the P-47

Originally, the Air Corps adopted the M2 with a 600 r.p.m. cyclic rate. But, as aircraft speeds increased, fighter pilots had less time to track and shoot. Therefore, Frankford Arsenal boosted muzzle velocity from 2700 to 2880 f.p.s.. The standard ball cartridge was the 709-gr. projectile atop 253 grs. of IMR-5010. Armorers experimented with various belting combinations, alternating ball, armor-piercing incendiary (API) and tracer. The M2 AP (armor piercing) round would defeat nearly an inch of face-hardened steel at 200 yds. Armor-piercing incendiaries (usually 647 to 662 grs.) were most useful against aircraft, as they could penetrate enemy armor and engine blocks, sever enemy airframe components, and ignite enemy fuel tanks.¹

Seeing a Thunderbolt diving at you with 8 .50s throwing a stream of fire had to be a terrifying experience!

^{1 Barret Tillman, The .50-cal. Browning Machine Gun—The Gun That Won The War, American Rifleman website, https://www.americanrifleman.org/articles/2017/2/23/the-50-cal-browning-machine-gun-the-gun-that-won-the-war/ accessed 1-6-2020}
